AAD rear upper arms install

vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,703
Reactions
156,609
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
#1
Today I installed the 4 upper arms. I did put the number 4 tabs in to start off with (2 are what they come with) being many have used 4-7. I already have the trailing arms installed and being the factory toe arms are adjustable I don't think I will add those. Do one side at a time. Only things I unhooked were the brake cable on the body, the lower shock bolt and the sway bar links. I did the sway bar so I could rotate it for more room if I needed to so the links for the sway bar you do need to do both sides from the start. I placed a jack under the cradle by the exhaust. Take out both cradle bolts on the side you are working on then lower the jack. I do have cradle lockouts installed so the ones on the other side may have not let it drop as far. The front upper bolt was close to coming out but I did have to use a pry bar to lower the front maybe an inch to get the bolt out. Could also be the Chargers and Challengers are different in that area. Once the arms are swapped out jack it up and install the cradle bolts. Move to the other side and do the same thing. Also by doing a side at a time you can look to other side if you are not sure which way the bolts go. I had to jack up each arm to get the shock bolt and sway bar bolts back in

I was working pretty slow and it took around 3 hours. If you were to install the trailing arms and toe arms add another hour to 90 minutes. You could also drop some time if you had someone helping but I wanted to see how hard it would be doing it myself

This is the video I followed. (he did put the bolt on backwards on the center bar on the outside. The nut should be on the back not the front like the front arm)


Speedy also has a video that may help

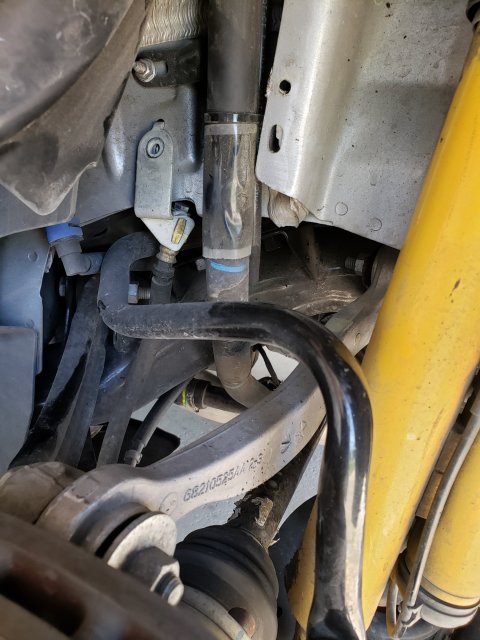

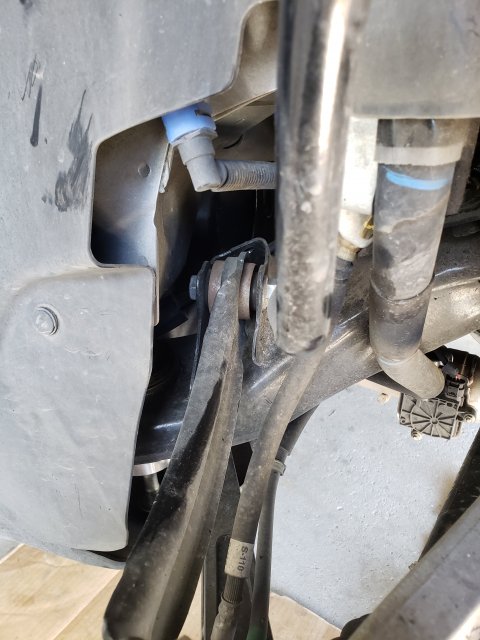

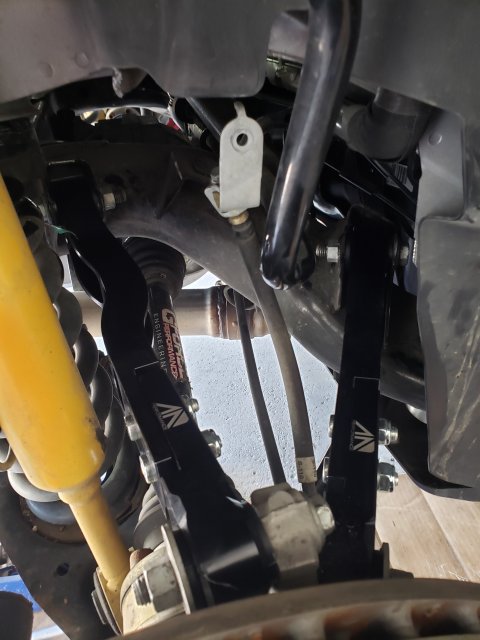

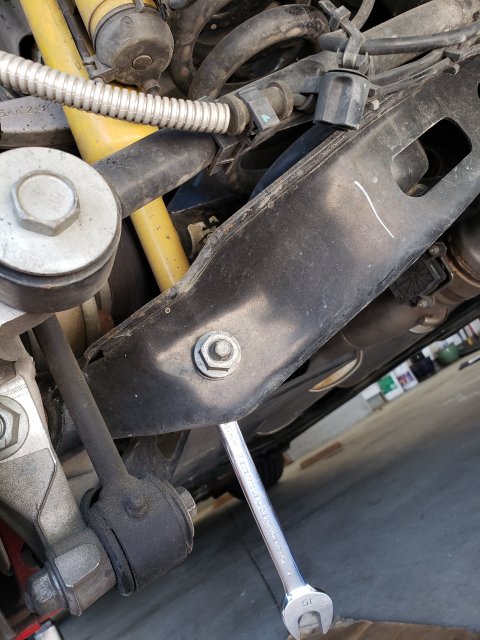

20220528_122710.jpg 20220528_123218.jpg 20220528_124026.jpg 20220528_114546.jpg



OP
vortecd

vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,703
Reactions
156,609
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
Thread Starter #2
If you were to change rear springs, this may be the easiest way to do it. Brake cable bolt, shock bolt and cradle bolts on one side you should be able to get the spring out



OP
vortecd

vortecd

Poster Club Hall of Fame
Premium Account
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#1248
Messages
48,703
Reactions
156,609
Likes
402
City
Middleville
State
MI
Country
United States
Vehicle
2016 Charger Hellcat
Thread Starter #3

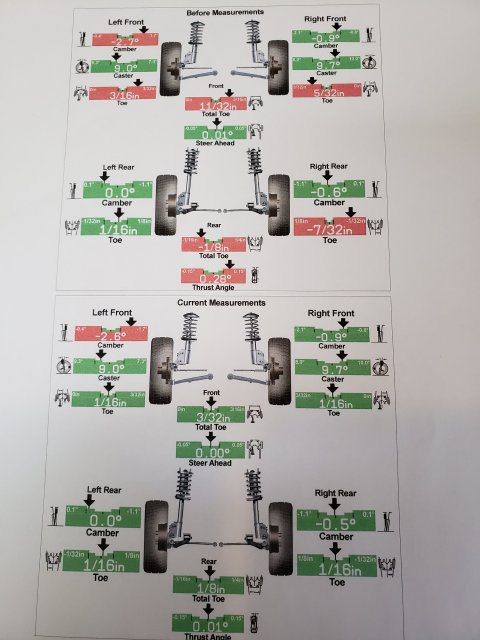

I started with the 4 tabs and this is what I got. One thing I did think about and did prove out was weight in the car. I was in the ballpark at a 1/2 tank based on where I would normally run the car. I went to the gas station and added 7 gallons when I was done. I noticed my steering wheel was off so I went back so they could fix it. I didn't get a print out then but my left front went from -2.6 to -1.7 so @Speedy! if you went back in again your right which was at -2.4 may have changed. Car has around 3/4 of a tank and the camber had moved to -.3. So I do think it is important to go in with how much gas will be in the tank when you go to the track. @fubar569 said each tab is around .20? Being my next tab is a 6 it looks like I need a 5. I will go back in after I change the tab and have it checked. It is free to check it
