• Sign Up! To view all forums and unlock additional cool features

    Welcome to the #1 Dodge, Jeep and RAM Forum dedicated to FCA owners and enthusiasts. Register for an account, it's free and it's easy, so don't hesitate to join the SRT Forum today!


Triple pump install Demon, Redeye, Superstock

jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
#1
Anyone done a triple pump system on the demon/redeye platform? I’m curious if the jet pump from fore is plug in play or if there is anything I need to get ahead of the project.



Hatermkr

1000 Posts Club
Firefighter
8 Second Best E/T
HFCOTM & HFCOTY
Member ID
#15491
Messages
1,279
Reactions
2,643
Likes
212
City
West bend
State
WI
Country
United States
Vehicle
2016 helldemon
#2
Anyone done a triple pump system on the demon/redeye platform? I’m curious if the jet pump from fore is plug in play or if there is anything I need to get ahead of the project.
Bueller, Bueller, Bueller



GNBRETT

500 Posts Club
Member ID
#9039
Messages
853
Reactions
1,176
Likes
132
City
Kingsport
State
TN
Country
United States
Vehicle
(2) Trackhawks, RS3 Swapped Golf R, Turbo Mustang.
#3
OP
jonx96

jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
Thread Starter #4

Unholy707

5000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
5,079
Reactions
4,205
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
#5
are you adding a 3rd fpcm or what? Only real difference between a hellcat triple setup and Redeye triple is the Redeye already has a 2nd fpcm, or so I thought



fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,489
Reactions
8,487
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
#6
are you adding a 3rd fpcm or what? Only real difference between a hellcat triple setup and Redeye triple is the Redeye already has a 2nd fpcm, or so I thought
On a narrow body non redeye aka OG Hellcat, they give you the FC3 which is the fuel controller. The most common setup is on pump always on and pump 2/3 come on after 5psi when a hobbs switch is triggered. I know that @Speedy! and @RGPIII have a tripple FPCM setup where a relay is used to trigger power to pump 2 or 3 based on the load coming from the tapped FPCM 1 wire with a splitter (at least that's how I think it works).

When I was doing my setup I never had a jet pump sent to me @jonx96 what is this device you speak of?



GNBRETT

500 Posts Club
Member ID
#9039
Messages
853
Reactions
1,176
Likes
132
City
Kingsport
State
TN
Country
United States
Vehicle
(2) Trackhawks, RS3 Swapped Golf R, Turbo Mustang.
#7
With twin boost a pumps the tripples are good for at least 1700 whp on corn. Buddy made those with his TT setup. Love the fact that it isnt noisy and can support just about anything we can throw at it. Im guessing on C16 they are good for 2000 +.

Yep I got the 285s on all 3. Thing should have fuel after install. Went 10an feed line 8an return



BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,590
Reactions
44,756
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
#8



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#9
My triple pump systems uses 3 FPCM each with it's own relay.

Pump 1 - factory relay in the fuse box
Pump 2 - add on relay in the harness
Pump 3 - add on relay in the harness

FPCM 1 is primary and 2 and 3 just mimic what it's doing fuel pressure wise. Seems to work well as far as I can tell.



OP
jonx96

jonx96

4000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#4957
Messages
4,246
Reactions
10,573
Likes
302
City
Small town
State
MI
Country
United States
Vehicle
2019 Challenger Redeye
Thread Starter #10
My setup will be different than the tap drop in. Also a redeye requires the hellcat jet pump. So I have a new one. Idk what that will entail.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,291
Reactions
7,770
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#11

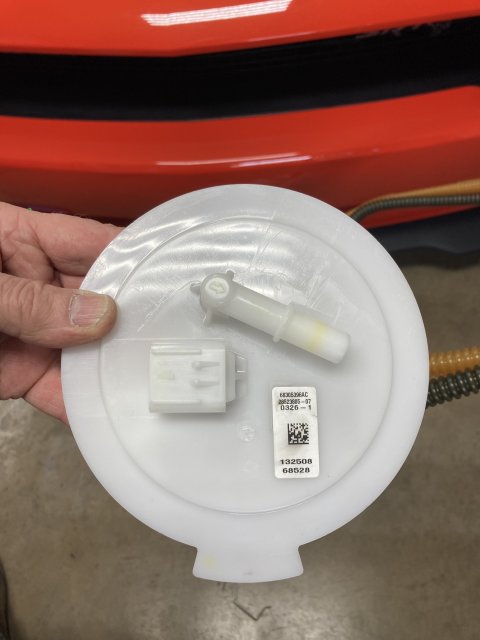

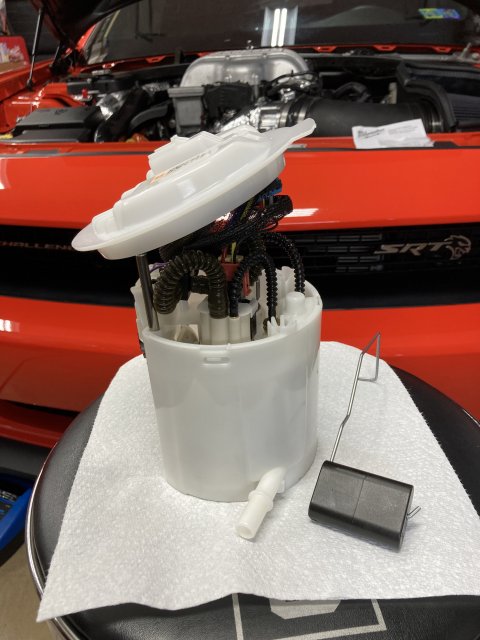

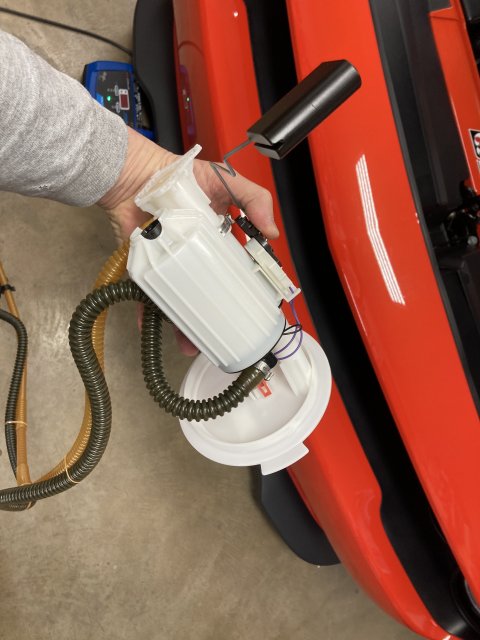

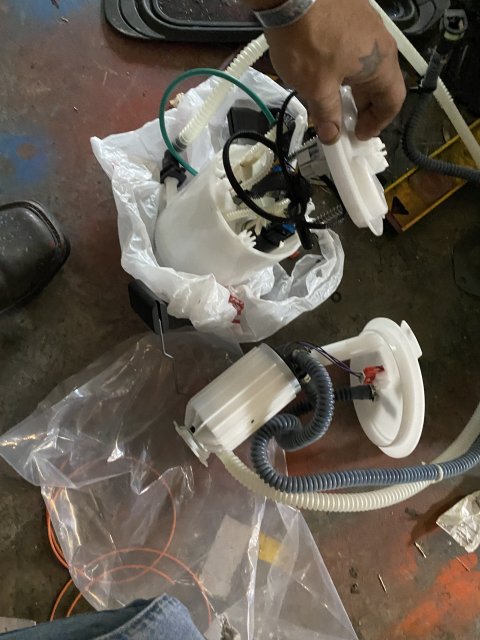

@jonx96 , have you pulled your pumps out yet? If no, check the passenger side pump bung and see how many wires are coming out of it. A 2018-19 RE system I had only had a fuel level sending unit on the passenger side, no pump what so ever over there. An item that looked like it could house something but it was just an empty shell that is connected to the twin pump system on the DS which looks like it pumps fuel over to that side not suck from it. I found it to be weird to understand how it works. I always thought there was a transfer pump on the passenger side but not on this system there wasn’t.

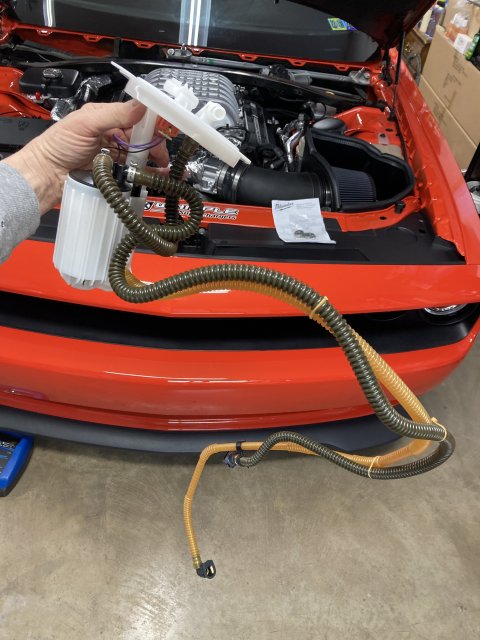

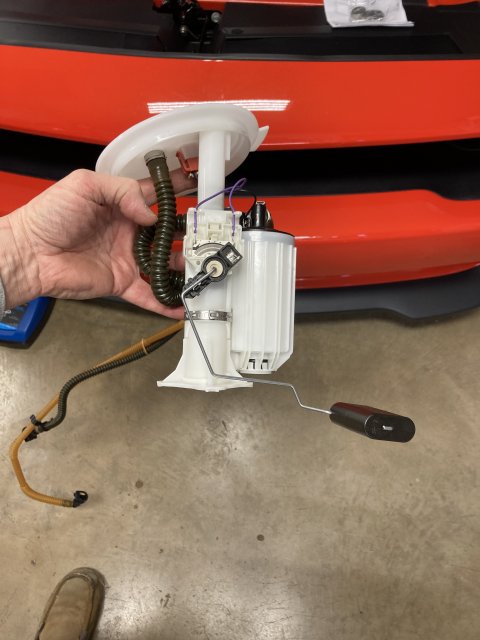

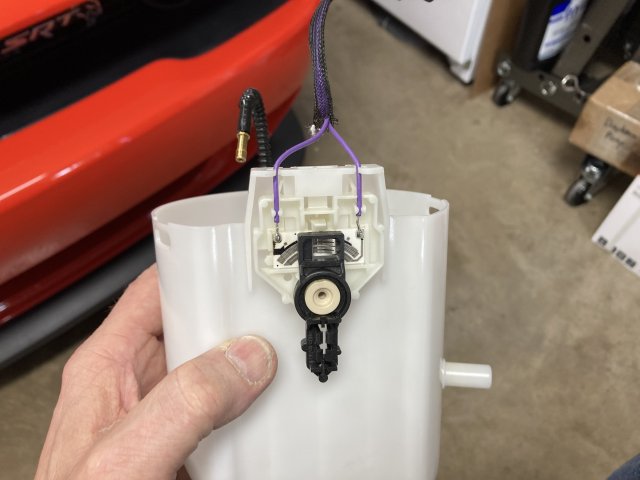

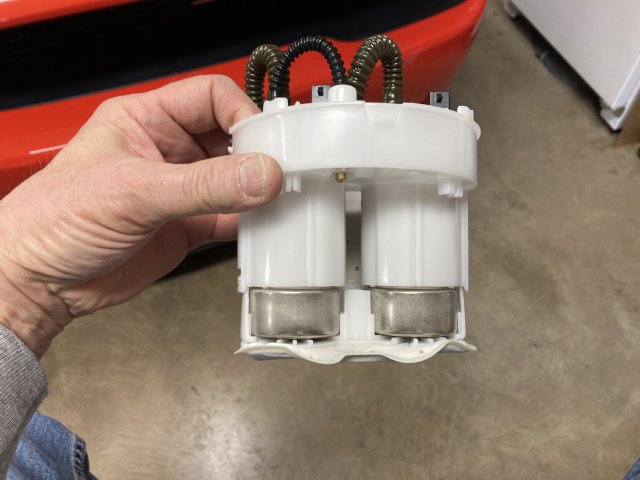

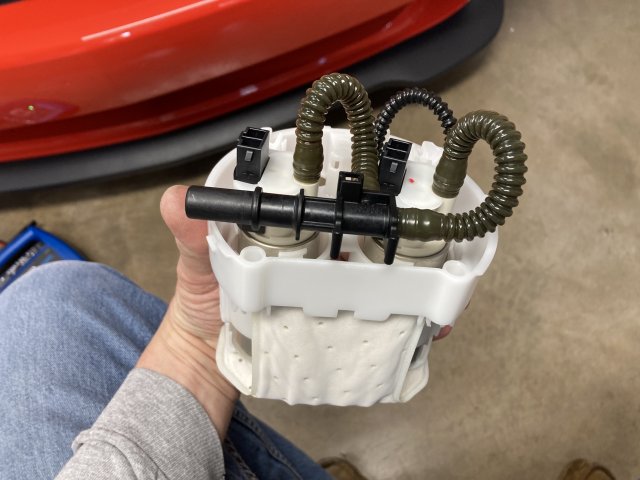

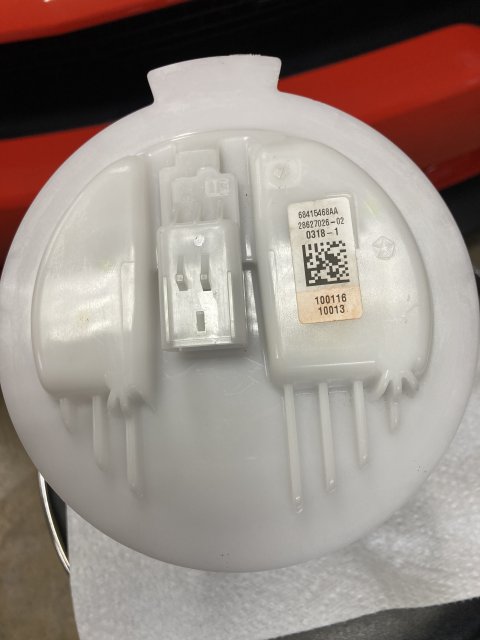

F719A0D1-2C1B-48FC-AD30-E1F7C451E3FE.jpeg F77D4A74-249B-4C6F-8BCB-884329C447AA.jpeg A942773B-FFD7-446F-AED9-BEA8E5144578.jpeg 06B1005E-9488-44AF-8CFE-4CF6AE50CCF7.jpeg 2510AC91-09DD-4A8D-AB45-8178FB5F8253.jpeg 4F69F340-66CD-4F92-9DD1-3253FAA4FFB8.jpeg 14FE5856-C4CA-493E-9FDC-32D0078D677D.jpeg BF424622-AFE8-4883-86AF-D12C92A5E23F.jpeg 8289671F-A70E-4669-9C26-E5B0634E4B19.jpeg CDC2AF08-FC99-45B5-A226-482981C37272.jpeg



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#12
Yeah I'm curious why the RE needs the jet pump to go to an aftermarket system like the dual/triple drop ins. Interesting if the RE doesn't have a jet pump at all on the passenger side. I always thought that was required for fuel to flow.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,291
Reactions
7,770
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#13
Yeah I'm curious why the RE needs the jet pump to go to an aftermarket system like the dual/triple drop ins. Interesting if the RE doesn't have a jet pump at all on the passenger side. I always thought that was required for fuel to flow.
There was no pump on the PS on this Redeyes system. When I took the main pump system apart to clean it and replace the filter it looks to have on one of the pumps a orfice that sucks fuel from that assembly on the PS and the other pump a orfice to return fuel to that side so I think it’s using the dual pumps to push and pull fuel from the PS of the tank. These check valves had fine screens in them that were fouled with lint and debris. Guy probably didn’t need new pumps, just needed to clean the existing filters and screens on his system!!
I know how to do this now and can offer a pump maintenance service if anyone is interested let me know. $100 plus shipping.

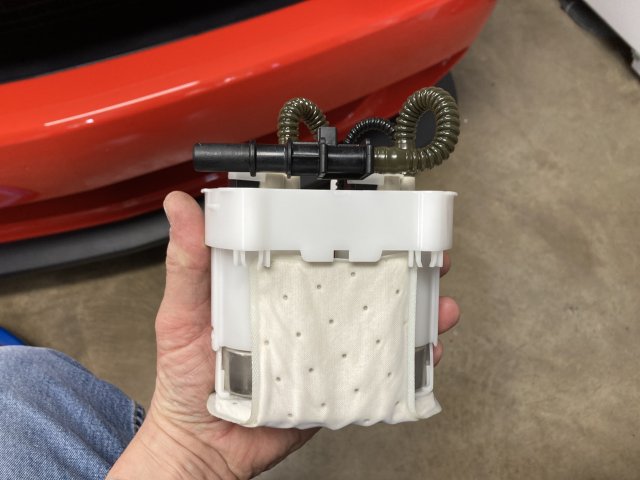

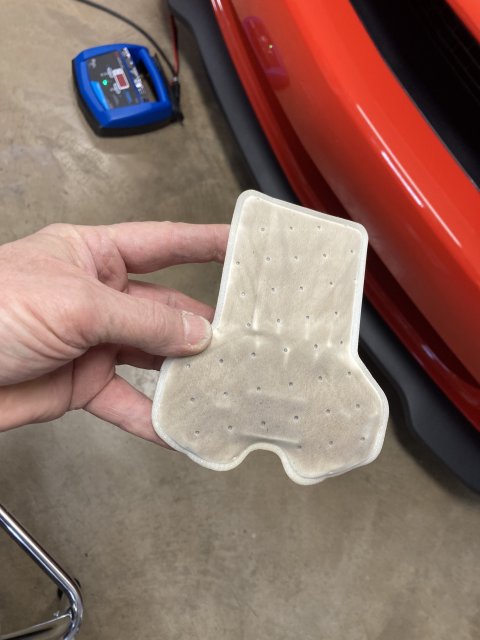

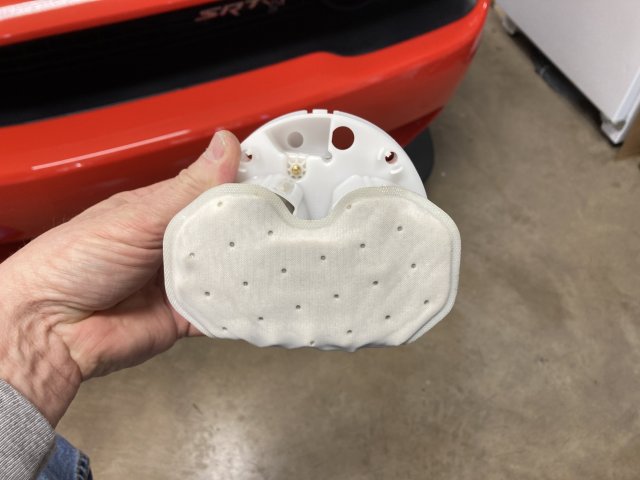

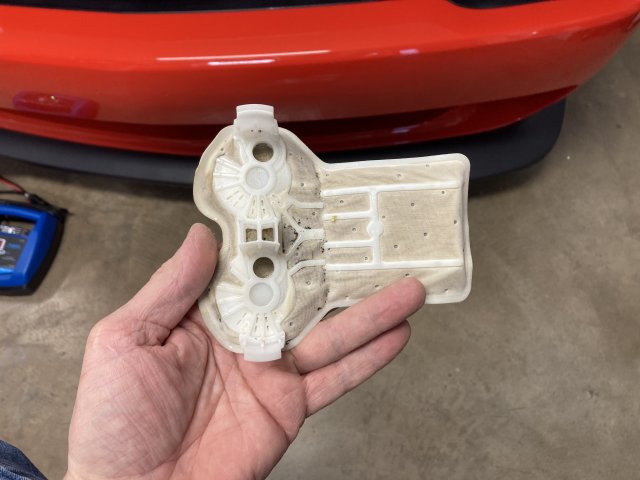

This was his pump filter before
21F1AFB2-8B0C-492B-BBC6-F95D7118EB2D.jpeg 0F50E936-F348-45DE-B211-768F703CA9C2.jpeg 7D54842D-9B2E-4379-AE58-8025CC03E308.jpeg

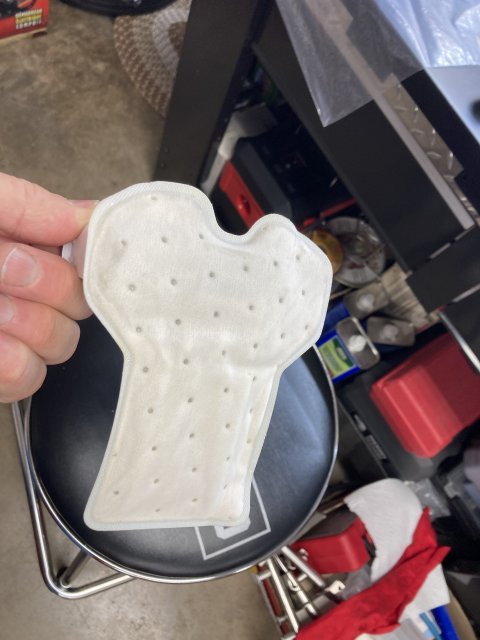

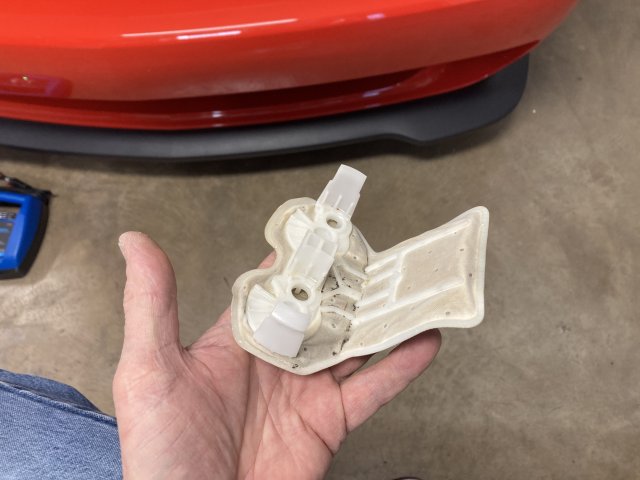

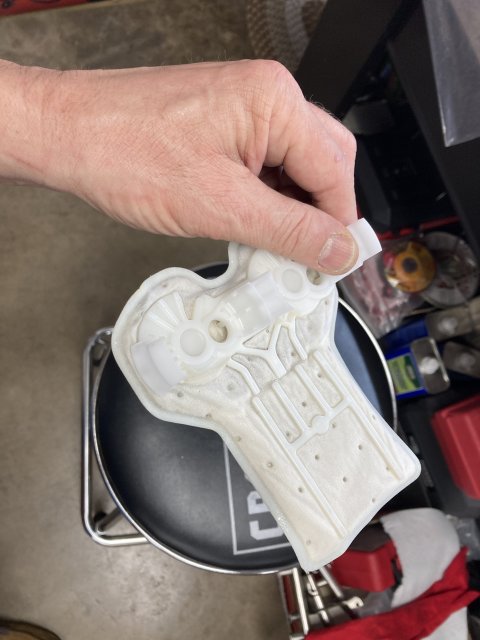

After

30A751F1-1A23-45A2-BAE2-C8E53F6E0D67.jpeg 1C2D42F7-59F8-4746-BB0C-5BB847833D8E.jpeg D2F89928-3E84-47B5-A220-E0CD40A0BD7B.jpeg B5D23354-11F7-41BD-B79B-46BDFC80E91B.jpeg

I unfortunately didn’t take any pictures of the screens, they’re small only about 3/8” in diameter so not much area and easily blocked. As their intaking unfiltered fuel from the PS side pick up.



Hatermkr

1000 Posts Club
Firefighter
8 Second Best E/T
HFCOTM & HFCOTY
Member ID
#15491
Messages
1,279
Reactions
2,643
Likes
212
City
West bend
State
WI
Country
United States
Vehicle
2016 helldemon
#14
Glad I have a old ass helldemon





Top
